Upgrading or replacing your bicycle drivetrain components requires careful verification to ensure smooth shifting and safe riding. To determine if an 8-speed bicycle cassette is compatible with your current setup, you must verify three critical interfaces: the physical spline pattern of your rear wheel’s freehub body, the mechanical limits and indexing of your shifter and rear derailleur, and the width of your chain. Ensuring these components align prevents gear skipping, chain drops, and premature wear on your drivetrain.
Identifying Your Freehub Body Standard
The freehub body is the splined cylinder on your rear wheel hub where the cassette slides on and locks into place. For an 8-speed cassette, the most common standard is the Shimano Hyperglide (HG) freehub design, which features a series of unevenly spaced splines and one distinct narrow spline to ensure the cassette cogs align correctly. To identify your standard, remove your rear wheel and inspect the splines. If you see a traditional multi-splined pattern where all slots run parallel along the length of the freehub, you are likely looking at an HG-compatible hub.
To confirm this standard beyond a visual check, look for manufacturer decals, model numbers, or laser-etched graphics on the hub shell. Brands print these details directly on the component. You can cross-reference these markings with the manufacturer’s official documentation to verify the exact freehub standard.

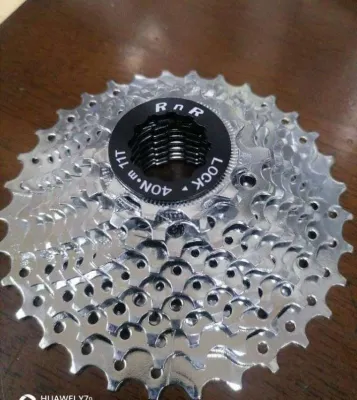

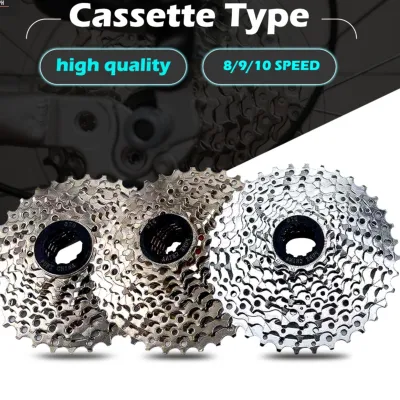

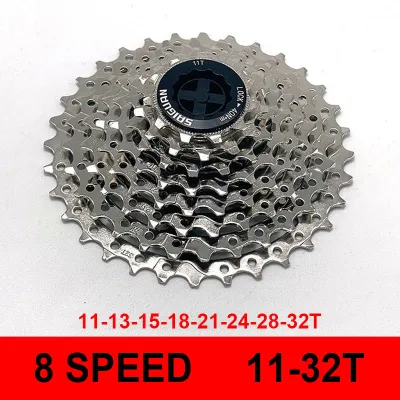

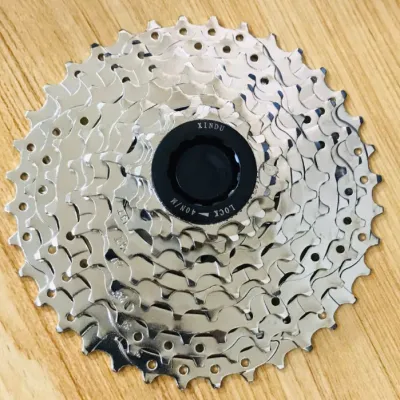

Products mentioned in this guide
71 Lazada user ratings
Great value for the price, Smooth and reliable gear changes, Perfect for challenging terrains, Perfect for challenging terrains, Great addit…Read full reviewShow less
Great value for the price, Smooth and reliable gear changes, Perfect for challenging terrains, Perfect for challenging terrains, Great addition to upgrade your bike's performance, Enhanced durability for long-lasting use, Ideal for both beginner and experienced riders, very good product, good material quality, and good customer service
take to long to deliver, but item arrived safely will order again, I recommend this to my friend and they like it thanks
maganda at silver na silver at mabilis yung deliver, salamat din sa seller at sa nag deliver
badget na badget sya goods na goods🙉🙉🙉👍👍👍👍👍🤝🤝👍👍👍👍👍👍👍👍☝️👍👍☝️👐👐👐👐👐👐👐
202 Lazada user ratings
🛠️Ease of Installation:Smooth shifting with 8/9/10-speed options., Durable steel construction.,
🔨Durability:k 🔌Compatibility:l 🛠️Ease of Installation:l
Perfect fit for my mountain bike.,
16 Lazada user ratings
bakit Iban kulay stainless. malayo sa post ninyo Pero ok na rin ito maganda naman
Okey na sa halagang 250 madami dents
Goods nmn ang item 👌
52 Lazada user ratings
Excellent workmanship for long-lasting performance,
good's I need to get a G I need goodss
🔨Durability:i like it. smooth rolling
mali ung dumating sa na cart
🔨Durability:good 😊😊😊😊
482 Lazada user ratings
🔨Durability:10 🔌Compatibility:10 🛠️Ease of Installation:10Easy to install and use, Efficient and responsive gear changes, Excellent workmansh…Read full reviewShow less
🔨Durability:10 🔌Compatibility:10 🛠️Ease of Installation:10Easy to install and use, Efficient and responsive gear changes, Excellent workmanship and design,
🔨Durability:10 🔌Compatibility:10 🛠️Ease of Installation:10 napaka Ganda at salamat sA rider at sA seller kaya order na po kayo napaka legit s…Read full reviewShow less
🔨Durability:10 🔌Compatibility:10 🛠️Ease of Installation:10 napaka Ganda at salamat sA rider at sA seller kaya order na po kayo napaka legit sobra 😘😘😘..,
Smooth and precise gear shifting, Long-lasting and low-maintenance, Strong and sturdy construction, High-quality steel construction,
Smooth and precise gear shifting, Great value for the price, Perfect for mountain biking,
Smooth and precise gear shifting, Smooth and quiet operation, thanks po seller..
Prices are valid at publication and may change. Please refer to the product page for the latest price.
Be aware of physical stop conditions that make mounting an 8-speed cassette impossible without replacing parts. Modern high-performance mountain bike hubs often use proprietary standards such as Shimano Micro Spline or SRAM XD/XDR. These interfaces feature completely different spline patterns and smaller diameters designed for cassettes with 10-tooth starting cogs. A standard 8-speed cassette will not physically slide onto or lock onto a Micro Spline or XD/XDR freehub body. If your wheel features one of these modern proprietary standards, you must swap the freehub body to an HG-compatible version or replace the rear wheel entirely to run a standard 8-speed cassette.
Verifying Derailleur and Shifter Match
Even if the cassette physically fits your wheel, your shifting system must match the spacing of the cogs. An 8-speed cassette requires an 8-speed shifter because the distance between each cog is standardized for 8-speed indexing. To verify your shifter, count the indexed clicks as you shift through the entire range. An 8-speed shifter will have exactly seven clicks, which correspond to the eight gear positions. If your shifter has more or fewer clicks, it will not align the chain correctly with the cogs on an 8-speed cassette, leading to constant gear skipping.
Next, inspect your rear derailleur to ensure it can handle the physical size of your new cassette. Rear derailleurs have two critical limits: maximum cog capacity (the largest cog the derailleur can physically clear) and total chain wrap capacity (the derailleur’s ability to take up slack chain across different gear combinations). You can find these specifications stamped on the inner cage of the derailleur or listed in the manufacturer’s official technical manual. If you install a cassette with a 34-tooth large cog on a short-cage road derailleur rated for a maximum of 28 teeth, the derailleur pulley will collide with the cassette, risking severe mechanical damage.
Finally, verify the cable pull ratio compatibility between your shifter and derailleur. The cable pull ratio determines how far the derailleur moves for every millimeter of cable pulled by the shifter. Road and mountain bike components from the same brand often use different pull ratios, and mixing brands typically results in incompatible indexing. Always consult the component specifications to confirm that your shifter and rear derailleur share the same pull ratio standard before finalizing your cassette choice.
Chain Width and Spacer Requirements
Drivetrain chains are designed with specific outer widths to match the spacing between cassette cogs. An 8-speed cassette features wider spacing between cogs than 9-speed, 10-speed, or 11-speed systems. Consequently, you must verify that your chain is rated for 8-speed use. An 8-speed chain typically has an outer width of approximately 7.1mm to 7.3mm. Check the markings on your current chain links or refer to your chain packaging to confirm its speed rating. Using a chain designed for 10 or 11 speeds on an 8-speed cassette can cause the chain to fall between cogs or fail to catch the teeth properly.
Another critical factor is the width of your freehub body. While standard 8-speed, 9-speed, and 10-speed cassettes share the same overall width, road-specific 11-speed and 12-speed HG freehub bodies are slightly wider to accommodate extra gears. If you are mounting an 8-speed cassette onto a wider 11-speed road HG freehub body, you must install a 1.85mm spacer behind the cassette before sliding it onto the splines. Without this spacer, the cassette lockring will bottom out on the freehub threads before fully compressing the cogs, leaving the cassette loose and wobbly.
To ensure correct installation, check the technical manuals for both your cassette and your wheel hub. These documents specify the exact spacer thickness and the precise order in which spacers and cogs must be loaded onto the freehub body.
Pre-Purchase Fitment Checklist
Before purchasing your new 8-speed bicycle cassette, go through this step-by-step checklist to guarantee a seamless installation:
- Freehub Spline Match: Confirm your rear wheel hub uses a standard Shimano/SRAM HG-style freehub body, not a proprietary Micro Spline or XD/XDR interface.
- Shifter Indexing: Verify your shifter is designed specifically for 8-speed systems and has exactly seven indexed clicks.
- Derailleur Capacity: Check that the largest cog on the new cassette does not exceed your rear derailleur's maximum cog limit, and that the total gear range fits within the derailleur's chain wrap capacity.
- Pull Ratio Compatibility: Ensure your shifter and rear derailleur are from compatible product families and share the same cable pull ratio.
- Spacer Verification: Determine if your freehub body is a wider road 11-speed standard, and acquire a 1.85mm spacer if necessary.
- Chain Width: Confirm your chain is rated for 8-speed drivetrains to match the cog spacing.
- Lockring Tool: Verify you have a compatible cassette lockring tool and chain whip for installation.
If any of these specifications are missing, unclear, or conflict with your current bike setup, stop the purchase. Consult a local professional bicycle mechanic or contact your hub and drivetrain manufacturers directly to prevent purchasing incompatible parts that could compromise your safety on the road or trail.
Frequently Asked Questions (FAQ)
Can I use a 9-speed chain on an 8-speed cassette?
While some riders attempt this modification, you should check your chain and cassette manufacturer specifications for official cross-compatibility guidelines. A 9-speed chain is narrower than an 8-speed chain. Because of this narrower outer width, using a 9-speed chain on an 8-speed cassette may cause the chain to rub against adjacent cogs or fail to shift smoothly under load. For reliable performance and safety, it is best to use a dedicated 8-speed chain.
Do all 8-speed cassettes use the same lockring?
No, lockrings can vary depending on the brand and the specific model of the cassette. Most standard HG-compatible 8-speed cassettes include a matching lockring in the packaging, but you must verify this before purchasing. Additionally, check your hub or cassette manual to confirm the required lockring tool size and thread pitch, as some proprietary or vintage hubs may require specific tool interfaces for secure installation.
