Upgrading or replacing an ebike controller can be incredibly confusing, especially when trying to decipher a tangle of wires and electrical specifications without damaging your expensive motor or battery. To match an ebike controller safely, you must align its voltage rating precisely with your battery’s nominal voltage, ensure its maximum current output does not exceed what your battery and motor can safely handle, and verify that the controller architecture and physical connectors match your existing components.
What voltage and current ratings must align across your battery, motor, and ebike controller?
Your ebike controller’s nominal voltage must match the nominal voltage of your battery, while its maximum current rating must align with the limits of both your battery’s discharge rate and your motor’s power capacity. Failing to align these values can lead to immediate component failure or severely degraded performance.
To begin, locate the nominal voltage labels on your existing battery pack and motor casing. Common ebike systems operate at 36V, 48V, or 52V. The controller you select must share this exact nominal rating. It is a common misconception that a controller can safely handle any voltage near its rating; however, a fully charged battery sits at a much higher voltage than its nominal label. For example, a 48V lithium-ion battery reaches approximately 54.6V when fully charged. The controller’s internal capacitors and transistors must be rated to handle this peak voltage safely without blowing.

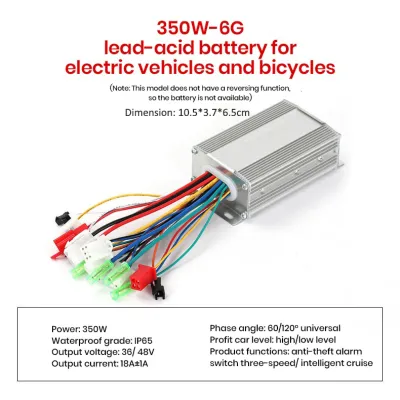

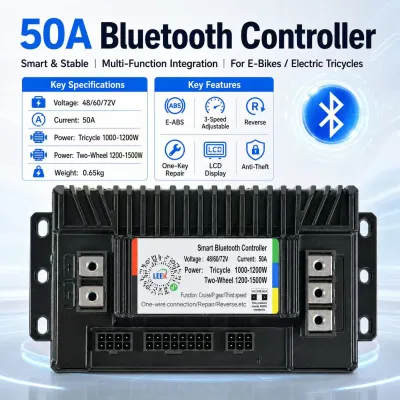

Products mentioned in this guide
33 Lazada user ratings
Powerful motor for smooth rides, Enhances the performance of your e-bike, Great value for the price, Easy to install and use, Dual mode for …Read full reviewShow less
Powerful motor for smooth rides, Enhances the performance of your e-bike, Great value for the price, Easy to install and use, Dual mode for versatile use, Dual mode for versatile use, High-quality materials for durability, Efficient and reliable motor controller,
OK na dumating na order ko at maganda naman pagkabalot ng products at maayos naman sana Sana lang gumana pg na Kabit ko na sa ebike at walan…Read full reviewShow less
OK na dumating na order ko at maganda naman pagkabalot ng products at maayos naman sana Sana lang gumana pg na Kabit ko na sa ebike at walang damaged
Great value for the price, Provides a comfortable riding experience, Thanks Seller And LAZADA ASWELL
Perfect for e-bikes, Great value for money, thanks seller and Lazada legit product worth buying 👍👍👍
13 Lazada user ratings
si pa na try sna compatable thanks
15 Lazada user ratings
arrived in good package. it looks good.. notyet installed . hopefully it will work.. no diagram inclution. . it needs litle research for the…Read full reviewShow less
arrived in good package. it looks good.. notyet installed . hopefully it will work.. no diagram inclution. . it needs litle research for the wiring configuration
Supports 48V-72V voltage, My E bike is very smooth to run again. Super ganda na uli ang performance at takbo ng ebike
Smooth and powerful acceleration, Easy to install and use, Provides precise control over motor speed
Perfect for ebike, Lightweight design, High performance, 3-mode sine wave
not yet tried
8 Lazada user ratings
controller is very good but no harness, I hope the seller will send the harness wire
Bumilis ang ebike ko, sa sobrang bilis na iwanan ako! No harness in fairness.
maganda sakto sa saige puma ko
619 Lazada user ratings
ok naman po siya nakabalot naman po ng mabuti...at tama rin po ung items na dumating po sa akin......at da raider naman po na nag deliver ng…Read full reviewShow less
ok naman po siya nakabalot naman po ng mabuti...at tama rin po ung items na dumating po sa akin......at da raider naman po na nag deliver ng items ko po salamat din po....hindi hindi ko pa lng na ikakabit.....
maraming salamat seller gumana sa ebike ko .at napaaga ang deliver star para kay seller👍👍.maraming salamat din sa rider na nag hatid ng item👍…Read full reviewShow less
maraming salamat seller gumana sa ebike ko .at napaaga ang deliver star para kay seller👍👍.maraming salamat din sa rider na nag hatid ng item👍.ganon din sa lazada at sa nag packed ng item maraming salamat po👍👍..
Provides a comfortable riding experience, Efficient and reliable motor controller, Enhances the performance of your e-bike,
Great value for the price, Powerful motor for smooth rides, Provides a comfortable riding experience,
Enhances the performance of your e-bike, Great value for the price, Powerful motor for smooth rides,
253 Lazada user ratings
Efficient and reliable motor controller, Effortlessly handles various terrains, Versatile compatibility with different voltage options, Mahi…Read full reviewShow less
Efficient and reliable motor controller, Effortlessly handles various terrains, Versatile compatibility with different voltage options, Mahina ang atras. walang speed no. 3
Quality: GOOD Appearance: GOOD Performance: EXCELLENT Thank you seller okay na ulit ebike ko. Working condition. 😊 more blessings sa shop ny…Read full reviewShow less
Quality: GOOD Appearance: GOOD Performance: EXCELLENT Thank you seller okay na ulit ebike ko. Working condition. 😊 more blessings sa shop nyo. ❤️
Enhances the performance of your e-bike, Smooth and responsive acceleration, thank you so much for shipping it immediately. truly appreciate…Read full reviewShow less
Enhances the performance of your e-bike, Smooth and responsive acceleration, thank you so much for shipping it immediately. truly appreciated
Effortlessly handles various terrains, Great value for the price, Enhances the performance of your e-bike, Easy to install and set up,
Prices are valid at publication and may change. Please refer to the product page for the latest price.
Next, you must evaluate the current ratings, measured in amperes (A). The controller regulates how much current is drawn from the battery and sent to the motor. You must ensure the controller’s maximum current limit does not exceed the continuous discharge rating of your battery’s battery management system (BMS). If a controller draws more current than the battery can safely supply, the battery’s protective circuits will shut down, or the cells may overheat.
Similarly, match the controller’s current output to your motor’s rated capacity. A motor rated for 500W running on a 48V system typically draws around 10 to 15 amps during normal operation. If you pair this motor with a high-output 35A controller, you risk sending excessive power to the motor windings during steep climbs, which can melt the internal insulation. If you find that the specification labels on your motor or battery are missing, worn, or illegible, do not guess the ratings. Stop the process immediately and consult the manufacturer or a qualified technician to verify the electrical limits before purchasing a controller.
How do you determine if your motor requires a brushed or brushless ebike controller?
You can determine your motor type by counting the main power wires exiting the motor casing: a brushed motor uses only two power wires, whereas a brushless motor requires at least three thick phase wires. Selecting a controller that matches this specific internal architecture is non-negotiable, as the two systems operate on completely different electrical principles.
To identify your motor type, inspect the physical wiring harness coming out of the motor hub or mid-drive unit. A brushed motor relies on physical carbon brushes to transfer electricity to the spinning armature, requiring only a positive and a negative wire. In contrast, a brushless direct current (BLDC) motor uses electronic commutation. This design requires three thick phase wires—typically colored blue, green, and yellow—to deliver alternating pulses of power to the motor coils.
Additionally, many brushless motors feature a second, thinner wiring bundle containing five small wires. These are the Hall sensor wires, which communicate the rotor’s precise position back to the controller to ensure smooth, stutter-free acceleration from a complete stop. If your motor has these sensor wires, you will need a dual-mode or sensor-compatible brushless controller.
Mid-drive motors often present unique communication requirements compared to standard hub motors. Many mid-drive systems integrate proprietary torque sensors and internal controllers that require specific firmware to function. Attempting to force a generic brushed controller onto a brushless motor, or vice versa, will result in zero motor movement and can permanently damage the controller’s internal circuitry. Always check the manufacturer documentation or search the original part number stamped on the motor casing to confirm its internal design.
Which physical connectors and pinouts are necessary to link your ebike controller successfully?
Successful physical integration requires matching the phase wire connectors, Hall sensors, throttle, and pedal assist system (PAS) plugs to the exact pinout configuration of your new controller. Even if the plug shapes look similar, you must verify that the wire colors and functions align perfectly before securing the connections.
Start by examining the main phase wire connectors. Because these wires carry high current from the controller to the motor, they require heavy-gauge wire (typically 12 to 14 AWG) and robust, high-quality connectors. Common styles include bullet connectors, Anderson Powerpoles, or waterproof MT60 plugs. Ensure these connections are tight and fully insulated; loose phase connections create high electrical resistance, which can melt the plastic connectors and cause a short circuit.
Next, look at the low-current signal plugs for your throttle, brake cut-offs, and pedal assist system. These often use multi-pin JST connectors or specialized waterproof Julet connectors. You must verify the pinout configuration rather than assuming matching plug shapes mean matching functions. For instance, a three-pin throttle plug typically carries a 5V power source, a ground wire, and a signal return wire. Connecting a power wire to a signal terminal can instantly fry the throttle sensor or the controller’s low-voltage regulator.
If the connectors on your new controller do not match your existing components, look for manufacturer-approved adapter harnesses. Splicing and soldering wires is an option, but it should only be attempted if you are comfortable reading wiring diagrams and using heat-shrink tubing. If you are unsure of the pinout functions, stop and seek professional assistance. Finally, always verify that all external connections have intact rubber waterproofing seals to prevent moisture from entering and causing short circuits during wet weather rides.
What common installation mistakes lead to a burnt ebike controller or poor performance?
The most catastrophic installation mistake is reversing the positive and negative battery connections, which instantly destroys the controller’s internal circuitry. Other frequent errors include neglecting thermal management and ignoring early warning signs of electrical mismatch during initial testing.
Before making the final connection between the battery and the controller, always use a digital multimeter to verify the polarity of the wires. Do not rely solely on wire colors, as aftermarket batteries and controllers sometimes use non-standard coloring. A single second of reversed polarity will bypass internal protections and burn out the controller’s metal-oxide-semiconductor field-effect transistors (MOSFETs), rendering the unit useless.
Another common mistake is ignoring heat dissipation requirements. Ebike controllers generate substantial heat, especially when riding up steep hills or carrying heavy cargo in the hot, humid climate of the Philippines. Mounting the controller inside a completely sealed plastic bag or an unventilated frame compartment traps this heat, leading to thermal degradation. Always mount the controller in a location where its aluminum cooling fins are exposed to natural airflow.
Additionally, ensure you do not exceed the continuous current limits of your system. While a controller might handle high peak currents for brief moments, sustained heavy loads will cause rapid heat buildup. During your first test ride, monitor the system closely. If you notice stuttering acceleration, unusual motor vibrations, or if the controller housing becomes hot to the touch within a few minutes, stop riding immediately and disconnect the power. These are clear indicators of incorrect phase wire alignment or an electrical mismatch that requires immediate troubleshooting before permanent damage occurs.
