Finding the correct bottom bracket size is the most critical step when replacing a worn-out, creaking drivetrain component. To get the perfect fit, you must measure two primary dimensions: the width of your frame’s bottom bracket shell and, if your bike uses a traditional cartridge system, the total length of the spindle. Getting these numbers right ensures your crankset spins smoothly, aligns perfectly with your rear cassette, and prevents premature wear on your chain and chainrings.
In the tropical climate of the Philippines, where high humidity, heavy monsoon rains, and coastal salt air are common, bottom brackets endure significant environmental stress. Water and road grime can easily bypass seals, leading to corrosion, rust, and that notorious creaking sound during steep climbs. When it comes time to replace this hard-working component, taking precise physical measurements is far more reliable than guessing based on your bike’s model year alone.
Measuring your bottom bracket requires a systematic approach, starting with the right tools and a clean workspace. By disassembling the crankset, identifying your frame’s specific interface, and taking careful millimeter-scale measurements, you can confidently purchase a compatible replacement that will keep your bicycle running quietly for thousands of kilometers.
Products mentioned in this guide

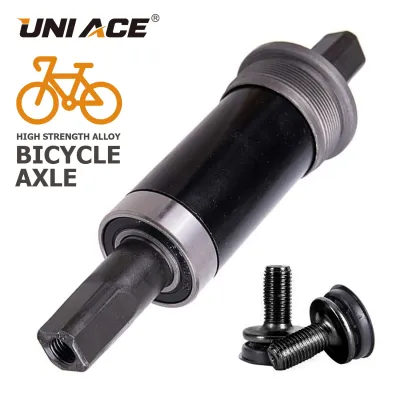

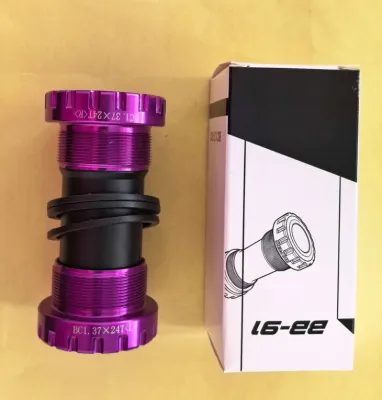

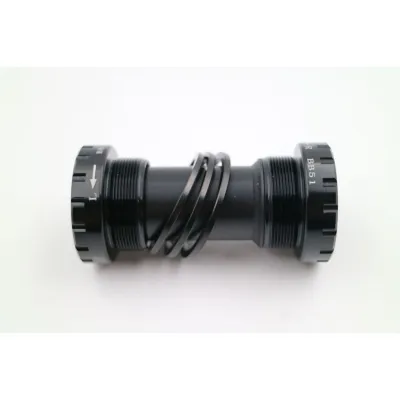

![Sagmit BB91 Sealed Bearing Hollowtech Bottom Bracket 68-73mm Mountain Bike MTB Road Bike Compact [COD]](https://img.lazcdn.com/g/p/7bc07e1465941c7caef1476be01ad81c.jpg_400x400q80.jpg_.webp)
75 Lazada user ratings
maganda yung pagka-violeta nya matingkad, yung quality same lang din ng mga nauna kong hollowtech BB, wala pa naman akong nakikitang problem…Read full reviewShow less
maganda yung pagka-violeta nya matingkad, yung quality same lang din ng mga nauna kong hollowtech BB, wala pa naman akong nakikitang problema sa mga yun, sulit narin mura lang naman at mabilis lang din ang delivery.
good quality is the best time po dadating yung truck and seatpost clamp on the wings of love you too much creatine monohydrate
goods naman xa,kya lg ung merong sabit ung bearing nung isa,sana maging ok na pg nkabit na at nagamit
🔨Durability:Long-lasting 🔌Compatibility:exactly to my bike 🛠️Ease of Installation:Very easy to install

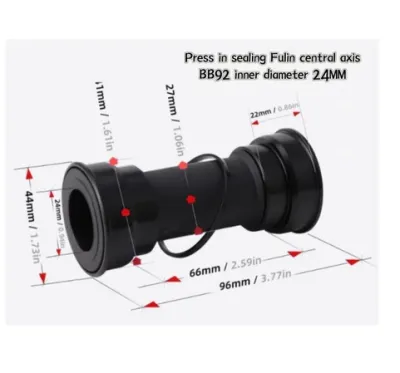

10 Lazada user ratings
🔨Durability:good looks strong 🔌Compatibility:same type compatible 🛠️Ease of Installation:so easy to install... mabilis ang delivery salamat s…Read full reviewShow less
🔨Durability:good looks strong 🔌Compatibility:same type compatible 🛠️Ease of Installation:so easy to install... mabilis ang delivery salamat seller.. mukhang matibay nmn un bottom bracket..

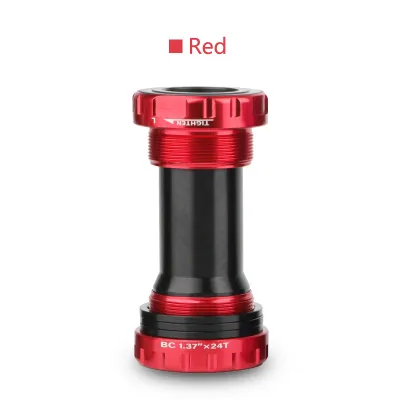

323 Lazada user ratings
🔨Durability:not yet installed 🔌Compatibility:excellent 🛠️Ease of Installation:not yet installed fast shipping thanks seller and rider. yung D…Read full reviewShow less
🔨Durability:not yet installed 🔌Compatibility:excellent 🛠️Ease of Installation:not yet installed fast shipping thanks seller and rider. yung Durability at performance rate ko after na magamit ko na.
🔨Durability:Ang Ganda good na good Ang na order o sana tumagal 🔌Compatibility: saktong sakto sa mtb ko 🛠️Ease of Installation: madaling ikabi…Read full reviewShow less
🔨Durability:Ang Ganda good na good Ang na order o sana tumagal 🔌Compatibility: saktong sakto sa mtb ko 🛠️Ease of Installation: madaling ikabit
🔨Durability:dhxccchb fox dy skn v 🔌Compatibility:vhnnnbbbbb CK fk kb 🛠️Ease of Installation:ccxxxccvbnn body djk dn kc di UV cu
🔨Durability:ok Wala pah Naman sira 🔌Compatibility:ok din 🛠️Ease of Installation:ok pasok sa mtb ko sana mag tagal salamat
191 Lazada user ratings
Kailangan alam niyo muna anong sukat ng square tapered bottom bracket ang need niyo bilin kasi depende sa cranks and sa frame yan.. That bei…Read full reviewShow less
Kailangan alam niyo muna anong sukat ng square tapered bottom bracket ang need niyo bilin kasi depende sa cranks and sa frame yan.. That being said, mga nasa 107-113mm na bb ang need niyo for most 1by setups para di mukhang overextended ang crank arms. Maganda ang stock bolts nito hindi mo na need bumili ng aftermarket pa
Perfect for mountain bikes,
🔌Compatibility:good

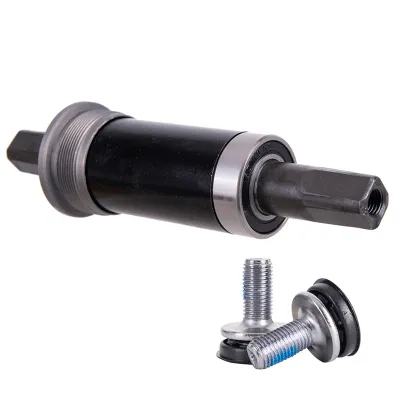

34 Lazada user ratings
Package received with good condition

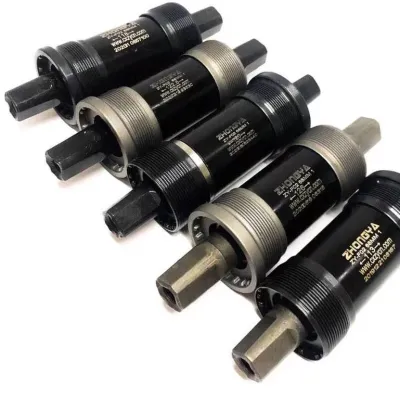

729 Lazada user ratings
Iba yung dumating saken kesa sa picture ng order ko. Ang inorder ko ay CXZK pero ang pinadala ng seller ay LONGGO! Pero ok naman ang sukat 6…Read full reviewShow less
Iba yung dumating saken kesa sa picture ng order ko. Ang inorder ko ay CXZK pero ang pinadala ng seller ay LONGGO! Pero ok naman ang sukat 68mm cartridge at 113mm long. Sana next po seller kung out of stock kayo ng items be honest sa buyer. Salamat.
Highly recommended for all bike enthusiasts, Provides a stable and secure ride, Great value for the price, Perfect fit for my bike, High-qua…Read full reviewShow less
Highly recommended for all bike enthusiasts, Provides a stable and secure ride, Great value for the price, Perfect fit for my bike, High-quality materials used, Waterproof design is a great feature, Durable and long-lasting,
Perfect fit for my bike, Impressive build quality, Easy to install, Highly recommended for all bike enthusiasts,
nahilagay kuna mukang matibay naman sakto lang salamat sellerss lazada rider mabilis diliver mabait riders
Great value for the price, Perfect fit for my bike, well packed fast shipping thanks seller and lazada
1,172 Lazada user ratings
Improved bike performance, Easy installation process, Great value for money, Durable alloy material, Enhanced power transfer, Perfect fit fo…Read full reviewShow less
Improved bike performance, Easy installation process, Great value for money, Durable alloy material, Enhanced power transfer, Perfect fit for my bike,
Perfect fit for my bike, Smooth and efficient pedaling, Easy installation process, Smooth and noise-free operation, Sturdy and reliable cons…Read full reviewShow less
Perfect fit for my bike, Smooth and efficient pedaling, Easy installation process, Smooth and noise-free operation, Sturdy and reliable construction,
ok sa oright.. tnxs maayos 🔨Durability:good 🔌Compatibility:nice match 🛠️Ease of Installation:yes easy
walang masamang tolnilyo awit sa inyo paano to ma ikakabit Smooth and efficient pedaling,
Prices are valid at publication and may change. Please refer to the product page for the latest price.
Tools Required to Measure Bottom Bracket Size
Before you begin disassembling your bicycle, gathering the correct tools is essential for an accurate measurement. Precision is key when dealing with bicycle frame tolerances, where a discrepancy of just one millimeter can cause shifting issues or frame rub.
A set of digital or vernier calipers is the most important tool for this job. Calipers allow you to measure the exact width of the frame shell and the outer diameter of the spindle down to a fraction of a millimeter. While a standard metric ruler or tape measure can work in a pinch, they introduce a high risk of parallax error, which can easily lead to ordering the wrong part.
To access the bottom bracket itself, you will need specialized removal tools. For older or entry-level bikes with square-taper spindles, a dedicated crank puller is required to safely separate the crank arms from the spindle without damaging the aluminum threads. You will also need the specific bottom bracket tool that matches your cup style, whether it is a splined tool for cartridge units or an external notch wrench for outboard cups.
Finally, prepare a clean workspace with plenty of clean rags and a high-quality bicycle degreaser. Years of riding through muddy trails or dusty city streets accumulate a thick layer of grime around the bottom bracket area. Thoroughly cleaning the frame shell and the old component is necessary to read laser-etched markings and to ensure your calipers sit perfectly flat against the metal surfaces.
Identifying Your Bottom Bracket Interface
Modern bicycles use a wide variety of bottom bracket designs, which can be broadly categorized into threaded and press-fit interfaces. Correctly identifying which system your frame uses is a prerequisite for choosing the right measurement technique and avoiding catastrophic frame damage during removal.
Threaded bottom brackets are the most common standard, especially on aluminum and steel frames. You can identify a threaded system by looking for visible notches, splines, or wrench flats on the external portion of the cups that sit outside the frame. These cups screw directly into threads cut into the inside of the frame’s bottom bracket shell.
Press-fit systems, on the other hand, are frequently found on carbon fiber frames and high-end aluminum models. These systems feature a smooth frame shell with no internal threads. Instead of screwing in, the bearings or plastic cups are pressed directly into the frame using a specialized press tool. Visually, press-fit shells look clean and flush, with no external tool notches or threads visible on the frame edges.
Mistaking a press-fit system for a threaded one, or vice versa, can lead to expensive mistakes. Attempting to unscrew a press-fit cup with a pipe wrench or trying to hammer out a threaded cup will permanently ruin your bicycle frame. Always inspect the junction between the bottom bracket cup and the frame shell carefully before applying any force.
How to Measure Bottom Bracket Shell Width
The bottom bracket shell is the cylindrical part of your bicycle frame where the bottom bracket is housed. Measuring its width is the first step in determining compatibility, and this measurement must be taken directly on the frame itself.
To begin, you must remove the crankset and, ideally, the bottom bracket cups to expose the bare frame shell. If you are unable to remove the cups, you can still measure the shell, but you must ensure your measuring tool only contacts the frame’s metal or carbon edges, completely avoiding the lip of the bottom bracket cups.
Once the shell is exposed, use your degreaser and rags to clean the outer faces of the shell. Over time, paint overspray, dirt, and old grease can build up on these edges. Even a thin layer of debris can add half a millimeter to your measurement, which might confuse your search for a replacement.
Place your digital calipers flat against the bare left and right faces of the frame shell. Take measurements at three different points around the circumference—such as the top, bottom, and front—to ensure the shell faces are parallel and have not been warped or damaged. Record the average measurement in millimeters.
Most standard bicycle frames conform to a few common shell widths. Road bikes and older mountain bikes typically feature a 68mm shell width. Modern mountain bikes commonly use a 73mm shell to accommodate wider tire clearances, while downhill and gravity-oriented bikes often utilize an 83mm shell.
How to Measure Spindle Length
If your bicycle uses a traditional cartridge bottom bracket, such as a square taper or a splined system, you must measure the spindle length to maintain your bike’s correct chainline. The spindle is the axle that passes through the bottom bracket, and its length determines how far your crank arms sit from the frame.
To measure a traditional spindle, you must remove the entire bottom bracket cartridge from the frame. Place your calipers at the absolute tips of the spindle, measuring from one flat end to the other. It is crucial to exclude any protruding threaded studs or integrated mounting bolts from this measurement; you only want to measure the solid metal body of the spindle itself.
Modern integrated cranksets, such as those using two-piece designs, handle spindle length differently. In these systems, the spindle is permanently pressed into the drive-side crank arm and slides through external bearings. For these, you do not need to measure spindle length for replacement, as the spindle is part of the crankset. Instead, you must measure the spindle’s outer diameter—typically 24mm, 30mm, or 28.99mm—to ensure your new bottom bracket bearings match your existing crankset.
Before relying solely on your physical measurements, inspect the body of your old bottom bracket cartridge. Manufacturers almost always stamp or laser-etch the dimensions directly onto the cartridge sleeve. Look for a sequence of numbers like “68 x 113” or “73 x 118.” The first number represents the shell width, while the second indicates the spindle length in millimeters. This printed specification is an excellent way to double-check your physical caliper readings.
Determining Thread Type and Cup Specifications
For threaded bottom brackets, knowing the shell width is only half the battle; you must also identify the thread standard. The two most common threaded standards are BSA (also known as English threading) and Italian (ITA) threading, and they are not compatible with each other.
BSA is the dominant standard worldwide. It is characterized by a shell width of either 68mm or 73mm. The defining feature of BSA is its directional threading: the non-drive side (left) uses standard right-hand threads (tightens clockwise), while the drive side (right) uses reverse, left-hand threads (tightens counter-clockwise). This reverse threading prevents the rotational force of pedaling from unscrewing the drive-side cup over time.
Italian threading is less common but still found on older road bikes and some modern Italian brands. Italian shells are always 70mm wide. Unlike BSA, both sides of an Italian bottom bracket use standard right-hand threads (tighten clockwise). Because of this, the drive-side cup has a tendency to walk or loosen during hard riding, often requiring threadlocking compound during installation.
To safely determine your thread type, look at the markings on the cups or carefully test the rotation of the drive-side cup. If the drive-side cup loosens when turned clockwise, you have a BSA bottom bracket. Additionally, pay attention to the flange width of external cups, as some designs require specific spacers to sit correctly against the frame without interfering with your chainline.
Verifying Measurements Before Buying a Replacement
Once you have recorded your shell width, spindle length, and thread type, you should cross-reference these numbers with your bicycle manufacturer’s official geometry and specification sheets. This step helps confirm that your physical measurements align with the original factory design.
If you are upgrading or changing brands, you may encounter compatibility workarounds like spacers. Many modern aftermarket bottom brackets are designed to fit multiple shell widths using included plastic or aluminum spacers. For example, a mountain bike bottom bracket designed for a 73mm shell can often be installed on a 68mm shell by placing 2.5mm spacers on either side of the cups, as specified by the manufacturer’s instructions.
Finally, pay close attention to the condition of your frame’s threads and faces during this process. If your measurements are highly inconsistent around the shell, or if you notice cross-threaded, stripped, or heavily corroded threads inside the frame, stop immediately. Forcing a new bottom bracket into a damaged shell will ruin the new component and can permanently destroy your frame.
In these situations, take your frame to a professional bike shop in the Philippines. A qualified mechanic can use specialized tap and facing tools to chase the threads and face the shell. This process cleans out corrosion, restores damaged threads, and shaves away uneven paint or metal, ensuring your new bottom bracket sits perfectly square and operates silently for years to come.
Community discussion
Share your experience or ask a question. Comments are reviewed before publication.
