Choosing the right bike hub can be a confusing decision when upgrading a wheelset or buying a new bicycle, especially when trying to balance long-term durability against maintenance effort. The choice between sealed cartridge and cup-and-cone bearings ultimately depends on your willingness to perform manual adjustments and your typical riding environment: sealed cartridge hubs offer a convenient, low-maintenance “set-and-forget” design where worn units are simply pressed out and replaced, whereas traditional cup-and-cone hubs provide exceptional durability, smooth rolling, and infinite adjustability for riders who enjoy hands-on maintenance. Understanding how these systems handle loads, repel dirt, and impact your budget will help you select the ideal hub for your cycling needs.
What Are the Core Structural Differences Between Sealed Cartridge and Cup-and-Cone Bike Hubs?
To understand how each bike hub performs, it is essential to look at how they are constructed. Sealed cartridge bearings are self-contained, pre-assembled units pressed directly into the hub shell. Each cartridge consists of an inner ring, an outer ring, a set of ball bearings held in a retainer, and protective rubber seals. Because they are manufactured as a single, closed component, they require no internal adjustment once installed; they simply sit flush against the axle and the hub shell.
In contrast, cup-and-cone bearings use a traditional loose-ball design where the bearing components are separate and integrated directly into the hub’s architecture. The “cup” is a polished, curved race machined directly into the hub shell or pressed into it. Loose steel ball bearings sit inside this cup, lubricated by grease, and are held in place by a threaded, cone-shaped nut called the “cone” that screws onto the axle. A locknut is then tightened against the cone to prevent it from moving.

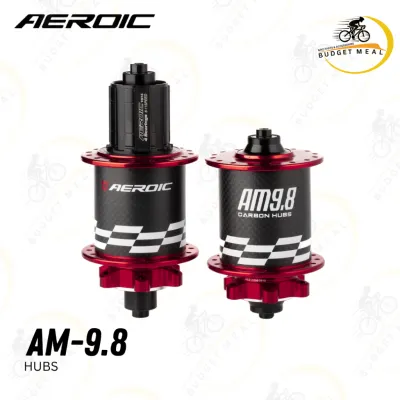

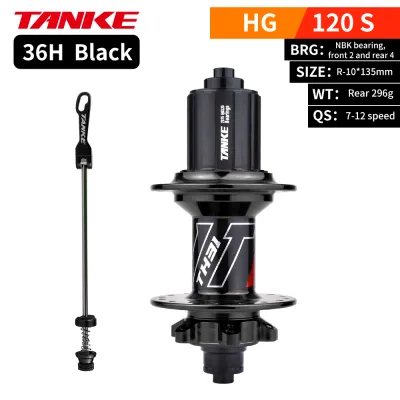

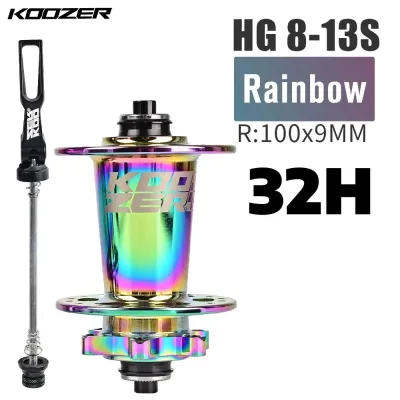

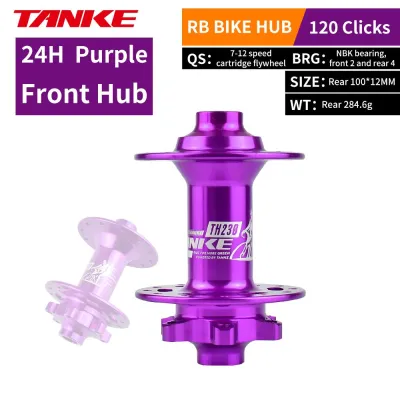

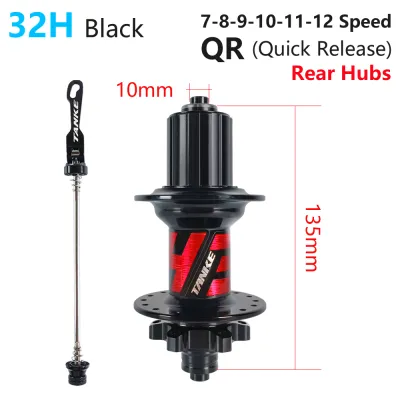

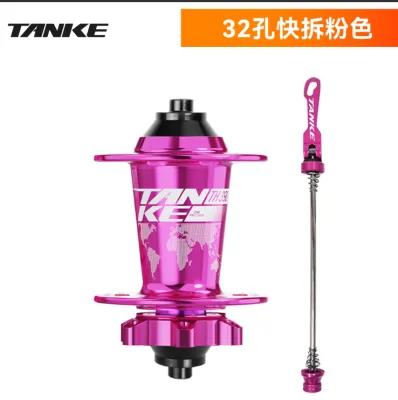

Products mentioned in this guide
5 Lazada user ratings
diko pa nakakabit pero nahirapan ako sa rear end cap threaded pala to pa clockwise ang luwag. hehe pwede na para sa 24 holes na wheelset
🔨Durability:10 🔌Compatibility:10 🛠️Ease of Installation:10
1,164 Lazada user ratings
Performance: Sturdy aluminum alloy construction, Provides a stable and responsive ride, Easy to install and adjust, Enhances the overall per…Read full reviewShow less
Performance: Sturdy aluminum alloy construction, Provides a stable and responsive ride, Easy to install and adjust, Enhances the overall performance of the bike, thank you seller 🙏🙏
Smooth and precise shifting, Sleek and stylish design, Provides a stable and responsive ride, Enhances the overall performance of the bike, …Read full reviewShow less
Smooth and precise shifting, Sleek and stylish design, Provides a stable and responsive ride, Enhances the overall performance of the bike, Sturdy aluminum alloy construction,
Enhances the overall performance of the bike, Smooth and precise shifting, Durable and reliable hub, Sturdy aluminum alloy construction, Pro…Read full reviewShow less
Enhances the overall performance of the bike, Smooth and precise shifting, Durable and reliable hub, Sturdy aluminum alloy construction, Provides a stable and responsive ride,
thank you seller at rider,ganda ng item tama ang order ko,legit ang store nyo,order ulit ako kpg ngkabudget.salamat
sobrang angas and kahit matagal dumating napaka solid naman thank youu seller napaka lakas
33 Lazada user ratings
🔨Durability:good 🔌Compatibility:good 🛠️Ease of Installation:good Durable aluminum alloy construction, Suitable for 8-12 speed bikes, Ideal fo…Read full reviewShow less
🔨Durability:good 🔌Compatibility:good 🛠️Ease of Installation:good Durable aluminum alloy construction, Suitable for 8-12 speed bikes, Ideal for mountain biking,
Thanks seller. Great item, wonderful experience. Amazing deal from an amazing seller. Thanks Lazada! More power and more deals
🛠️Ease of Installation: maganda ma recomend ko siya
35 Lazada user ratings
Enhances bike durability, Ideal for off-road cycling, Durable aluminum alloy construction, 32/36 holes compatibility, Precise bearing alignm…Read full reviewShow less
Enhances bike durability, Ideal for off-road cycling, Durable aluminum alloy construction, 32/36 holes compatibility, Precise bearing alignment, Perfect for mountain bike upgrades,
The front HUD is smooth, the price is reasonable for the quality, I look forward to buying again next time, giving the shop five stars.
Naa Speedone soldier Hubs Weinman rims Raceking continental tires Richman spokes 12s cogs sunshine
32/36 holes compatibility, Smooth disc brake performance,
332 Lazada user ratings
The quality is very good. It is completely consistent with the seller's description. I really like it. It completely exceeds the expectation…Read full reviewShow less
The quality is very good. It is completely consistent with the seller's description. I really like it. It completely exceeds the expectations. The delivery speed is very fast. The packaging is very careful and strict. The logistics company has a good service attitude, and the delivery speed is very fast. I am very satisfied with the shopping
The hub arrived fine. Delivery took a few days longer. It arrived with no ways to secure the hub inside the box but nevertheless the only da…Read full reviewShow less
The hub arrived fine. Delivery took a few days longer. It arrived with no ways to secure the hub inside the box but nevertheless the only damaged part is only the box and the hub itself arrived spotless.
maganda at sobrang Gaan pala Isang Paris nalang sana enorder ko orderen ko nalang yon isang hab sa harap nagandahan Ako sa disgn kompara sa …Read full reviewShow less
maganda at sobrang Gaan pala Isang Paris nalang sana enorder ko orderen ko nalang yon isang hab sa harap nagandahan Ako sa disgn kompara sa ibang hab Salamat po seller
received the item in good condition, well packaged and fast delivery. will be tested later. thank you seller and to the courier for deliveri…Read full reviewShow less
received the item in good condition, well packaged and fast delivery. will be tested later. thank you seller and to the courier for delivering my parcel safe.
🔨Durability:10 🔌Compatibility:10 🛠️Ease of Installation:10 silent and smooth good and brandnew item
10 Lazada user ratings
Quality: quality tlga solid na solid pag koozer Appearance: ganda mukhang mamahalin Performance: ganda ng sound nya di nakkaa irita
Beautiful, good looking, durable, good. thank you very much to subsidize.
Beautiful by the way.
Quality:legit
15 Lazada user ratings

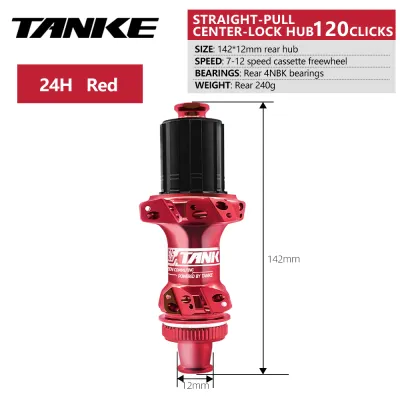

Low weight rear hub at 240g, Straight pull spokes design, Lightweight and durable, 6 sealed bearings for smooth ride,
🔌Compatibility:good
Prices are valid at publication and may change. Please refer to the product page for the latest price.
These structural differences fundamentally change how each system manages load distribution and axial adjustment. Cup-and-cone hubs are angular contact bearings by design, meaning the balls sit at an angle that allows them to handle both radial loads (the vertical weight of the rider) and axial loads (the side-to-side forces experienced when cornering). Sealed cartridge bearings are typically deep-groove radial bearings, which excel at carrying vertical loads but are less optimized for heavy lateral forces unless specifically designed as angular contact cartridges. Furthermore, while cup-and-cone systems allow you to adjust the axle preload to eliminate play, sealed cartridge systems rely entirely on manufacturing tolerances to align correctly.
How Do Maintenance Effort and Serviceability Compare Between the Two Hub Types?
The amount of time and technical skill you are willing to invest in bicycle maintenance is a significant deciding factor between these two hub designs. Servicing a cup-and-cone bike hub is a meticulous, hands-on process that must be performed regularly. To service this system, you must remove the wheel, use thin cone wrenches to loosen the locknut, unscrew the cone, and extract the loose steel balls. Every component must be degreased, cleaned, and inspected for wear. You then apply fresh grease to the cup, place the loose balls back, thread the cone, and adjust the bearing preload. This adjustment requires finding the exact point where the axle spins freely without any gritty resistance, yet has zero side-to-side play when clamped into the frame.
Sealed cartridge hubs prioritize convenience over adjustment. Under normal operating conditions, you do not service the interior of a sealed cartridge bearing. Maintenance is limited to wiping down the exterior of the hub to remove dirt and checking for smooth rotation. If a cartridge bearing becomes rough, dry, or develops play, the standard procedure is to remove the worn cartridge entirely and press in a brand-new, factory-sealed unit. While some riders pry off the rubber seals to clean and pack them with fresh grease, this is a temporary fix and not recommended by manufacturers as it can damage the delicate seal lips.
The tools required for each system also represent a major trade-off. Cup-and-cone hubs require relatively inexpensive, highly portable tools, primarily a set of double-ended cone wrenches (typically 13mm to 17mm) and standard open-ended wrenches. This makes them highly serviceable at home or on the side of the road. On the other hand, replacing sealed cartridge bearings requires specialized, workshop-grade equipment. You will need a dedicated bearing puller or blind-hole extractor to remove the old cartridges without damaging the hub shell, and a bearing press tool with matching drifts to press the new bearings in straight.
Which Hub Bearing System Offers Better Durability and Weather Resistance for Your Riding Conditions?
Durability and weather resistance depend heavily on how well each bike hub system prevents water, mud, and road grit from contaminating the rolling elements. Sealed cartridge bearings are highly regarded for their immediate weather resistance because they utilize integrated contact seals. These rubber seals physically press against the inner and outer races of the bearing, creating a highly effective barrier against moisture and fine dust. For riders who frequently navigate wet commutes, muddy trails, or dusty gravel roads, this design provides excellent protection. However, these contact seals do introduce a small amount of rotational friction, which is why some high-performance road cartridges use non-contact seals that offer less resistance but provide slightly less protection against heavy water ingress.
Cup-and-cone hubs rely on external dust shields, labyrinth seals, or simple rubber boots to protect the loose bearings inside. Because these seals do not physically seal the bearing chamber as tightly as a cartridge, cup-and-cone systems are more vulnerable to water contamination, especially during heavy rain or stream crossings. If water bypasses the external shield, it emulsifies the grease, turning it into a watery, abrasive paste that accelerates wear. To maintain durability, cup-and-cone hubs require proactive grease replenishment. If you ride in wet conditions, you must overhaul the hub more frequently to flush out contaminants before they cause permanent damage.
To monitor the health of your bike hub and prevent damage on the road, perform regular observable checks. Check for bearing play by holding the top of your bicycle tire and wiggling the wheel firmly from side to side; any clicking or lateral movement indicates that the bearings are loose or worn. Next, check for rotational roughness by removing the wheel, holding the axle ends, and spinning it. If you feel a gritty, notched, or catching sensation, the bearings require immediate attention. Finally, inspect the hub seals visually; any grease weeping out or heavy grime accumulation around the axle entry points suggests that the seals are compromised. If you observe these signs, stop riding and service or replace the bearings immediately to avoid damaging the hub shell.
How Do Cost and Replacement Strategies Differ for Cartridge vs Cup-and-Cone Hubs?
The financial commitment of owning a bike hub involves both the initial purchase price and the long-term cost of replacement parts and labor. Cup-and-cone hubs are highly economical over their lifespan because individual wear components are inexpensive. If serviced regularly, the polished cups in the hub shell can last almost indefinitely. If the bearings wear out, a complete set of high-grade replacement loose steel balls typically costs between ₱50 and ₱150. Replacement cones are widely available and generally cost between ₱150 and ₱500, allowing you to fully restore a worn hub for a very small investment.
Sealed cartridge hubs have a higher ongoing replacement cost. When a cartridge bearing wears out, you must purchase a complete replacement cartridge unit. High-quality sealed cartridge bearings typically cost between ₱300 and ₱1,200 per unit, and because most rear hubs require two to four cartridges, a full overhaul can quickly add up. If you do not own a bearing press and puller, you will need to take your wheels to a local bike shop in the Philippines, where standard labor rates for a professional hub overhaul or bearing replacement generally range from ₱300 to ₱800 per wheel.
When planning your replacement strategy, consider part availability. Loose steel bearings in standard sizes (such as 1/4-inch for rear hubs and 3/16-inch for front hubs) are universally stocked by local bike shops in the Philippines, making them easy to source. Sealed cartridge bearings require matching exact industry part numbers (such as 6802, 6902, or 6903) printed on the bearing seal. While standard cartridge sizes are common, some proprietary hub brands use custom dimensions that can be difficult to find locally, requiring special ordering online.
How to Choose the Right Bike Hub Based on Your Riding Style and Preferences?
Selecting the right bike hub requires matching the strengths of each bearing system to your personal riding habits, mechanical aptitude, and local environmental conditions. If you are a hands-on cyclist who enjoys maintaining your own equipment, or if you plan long-distance touring and bikepacking trips where self-sufficiency is critical, cup-and-cone hubs are an excellent choice. Their ability to be completely overhauled with basic, lightweight tools means you can service your wheels anywhere without needing a workshop press. Furthermore, if you ride primarily in dry, paved conditions, a well-adjusted cup-and-cone hub offers incredibly low rolling resistance and can easily cover tens of thousands of kilometers with nothing more than an annual grease change.
Conversely, if you prefer a low-maintenance bicycle that is always ready to ride with minimal intervention, sealed cartridge hubs are highly recommended. They are ideal for daily commuters, mountain bikers, and gravel riders who frequently encounter wet, muddy, or dusty trails. The robust contact seals on cartridge bearings provide excellent protection against the elements, and if water does manage to penetrate the seals during a wet ride, the damage is confined to the cheap, replaceable cartridge rather than the expensive hub shell itself. Once the bearings eventually wear out or become rough, you can simply have them swapped out at a local bike shop, instantly restoring your wheels to factory-fresh performance.
Ultimately, the decision comes down to a trade-off between labor and convenience. Cup-and-cone hubs offer the potential for near-infinite lifespan and low parts cost, but they demand your time, patience, and mechanical precision to prevent premature wear. Sealed cartridge hubs trade a higher replacement cost and the need for specialized tools for the peace of mind of a sealed, worry-free system that performs consistently in harsh weather. By evaluating how much time you want to spend in the workshop versus on the road or trail, you can confidently choose the hub bearing system that will keep your wheels spinning smoothly for years to come.
